Introduction
Welcome to Art Of Coding! Today, we’re taking a closer look at Binary Search Trees (BSTs), focusing on a common challenge: finding elements in BST. This topic is essential for understanding BSTs and it’s a popular challenge on LeetCode, which you can check out here.
Previously, we’ve covered various aspects of BSTs, such as identifying the minimum and maximum values, verifying if a structure is indeed a BST and the intricacies of insertion and traversal. Now, we’re delving into the mechanics of how to efficiently search for an element in a BST. We aim to present these concepts in an easily digestible format, ensuring that even those new to coding can grasp these fundamental ideas.
So, grab a cup of your favorite coffee, and let’s get started!
A Brief Overview of Binary Search Trees (BSTs)
Before we dive into the search process, let’s quickly refresh our understanding of what a Binary Search Tree (BST) is. For those who want a more detailed explanation, be sure to check out our in-depth article on Tree Data Structures.
In essence, a BST is a special kind of binary tree where each node has at most two children, referred to as the left child and the right child. What makes a BST unique is how these nodes are organized: the value of the left child is less than its parent node, and the value of the right child is greater. This property holds true for every node in the tree, making it remarkably efficient for searching and sorting operations.
Why is BST Efficient for Searching?
The structure of a BST lends itself to a quick search process. When searching for a value, you start at the root and then traverse down the tree. At each node, you make a decision: if the value you’re searching for is less than the current node’s value, you move to the left child; if it’s more, you go to the right child. This process repeats until you either find the value or reach a leaf node without finding it. Due to the BST’s inherent organization, this search operation is generally much faster than searching through an unstructured list of items.

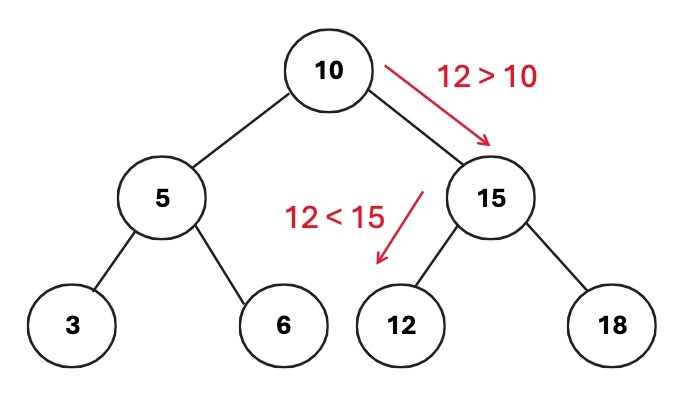

In the image below, we’re searching for the number 12. We start at the root, which is 10. Since 12 is greater than 10, we move to the right child. Next, we encounter 15. This time, 12 is less than 15, so we take the left path. Voilà! We find the number 12. Taking this direct path to find our target number is much quicker than having to look at each element one by one.
Implementing Search in a BST with Java
Searching through a Binary Search Tree (BST) can seem daunting at first, but with the right structure and method, it becomes a straightforward process. In this section, we’ll walk through a Java implementation that exemplifies how to search for a value within a BST.
Java Implementation
public class TreeUtil {
public static Node search(Node root, int value) {
if (root == null) {
return null;
}
if (value == root.getElement()) {
return root;
}
if (value < root.getElement()) {
return search(root.getLeft(), value);
} else {
return search(root.getRight(), value);
}
}
public static void main(String[] args) {
Node tree = new Node(10);
tree.add(5);
tree.add(15);
tree.add(3);
tree.add(6);
tree.add(12);
tree.add(18);
System.out.println(search(tree, 12).getElement());
}
}public class Node {
private int element;
private Node left;
private Node right;
public Node(int data) {
this.element = data;
}
public void add(int newValue) {
if (newValue < this.element) {
// If newValue is less than the current node's value, go left
if (this.left == null) {
// If left child is null, create a new node and assign it
this.left = new Node(newValue);
} else {
// If left child exists, recursively call add on the left subtree
this.left.add(newValue);
}
} else {
// If newValue is greater than or equal to the current node's value, go right
if (this.right == null) {
// If right child is null, create a new node and assign it
this.right = new Node(newValue);
} else {
// If right child exists, recursively call add on the right subtree
this.right.add(newValue);
}
}
}
public int getElement() {
return element;
}
public Node getLeft() {
return left;
}
public Node getRight() {
return right;
}
}
The BST is represented by two classes: Node and TreeUtil. The Node class constructs the tree, with each Node instance holding an integer value and references to its left and right children. The TreeUtil class, on the other hand, contains the search method which embodies the essence of BST search logic.
Here’s a step-by-step breakdown of the search method:
Base Case: If the root is null, it means the tree is empty or we’ve reached the end of a branch without finding the value. In this case, we return
null.Value Found: If the value we are searching for equals the current node’s value, the search is successful, and we return the current node.
Recursive Search: If the value is less than the current node’s value, we search the left subtree by recursively calling
searchwith the left child. If the value is greater, we do the same with the right subtree.Result: The search method will eventually return the node containing the value, if it exists, or
nullif it doesn’t.
The main method within TreeUtil demonstrates creating a BST and using the search method to find a value. It’s a practical example of how the search functionality is invoked and the expected output.
In practice, when you run the main method looking for the number 12 in the tree, the search method will navigate through the nodes, comparing values until it locates the node with the value 12 and returns it.
This approach is not just theoretical but a hands-on way to understand how a fundamental BST operation is implemented in a real-world programming language like Java.
Understanding the Complexity of BST Search Operations
Time Complexity
The time complexity of a search operation in a BST largely depends on the height of the tree. In the best-case scenario, where the tree is balanced, the height of the tree is log(n), where n is the number of nodes. This is because a balanced BST is structured to have a roughly equal number of nodes on either side of any given node, allowing us to eliminate half of the remaining nodes at each step. Therefore, in a balanced BST, the time complexity of a search operation is O(log n).
However, in the worst-case scenario, the BST can be highly unbalanced—resembling a linked list with a height of n. This can happen if the nodes are inserted in an ordered manner (either ascending or descending). In this case, the time complexity degrades to O(n), as we might need to traverse nearly every node to find the one we’re looking for.
Space Complexity
The space complexity refers to the amount of memory space required to perform the search operation. For our recursive search implementation, the space complexity is also tied to the height of the tree because of the call stack used for recursive calls. In the best-case scenario (a balanced tree), the space complexity would be O(log n). In the worst case (an unbalanced tree), the space complexity would be O(n), due to the call stack depth equaling the number of nodes in a single branch of the tree.
Conclusion
Congratulations on taking this deep dive into the world of Binary Search Trees and understanding the ins and outs of the search operation! We’ve traversed from the basic concepts to a detailed complexity analysis, equipping you with the knowledge to tackle BST searches with confidence. 🌳
But the journey doesn’t stop here! We encourage you to explore our other articles on BSTs and trees, where you’ll find a wealth of information to further your understanding.
And for those who love a good challenge, why not try implementing the BST search operation iteratively? Ditch the recursion and see if you can devise an iterative approach to navigate through your tree. It’s a great exercise to flex your coding muscles and gain an even deeper understanding of tree traversal. 💪
Happy coding, and see you in the next article! 👩💻👨💻
